This bundle includes everything needed for a Gen 3 LS swap with 4L transmission

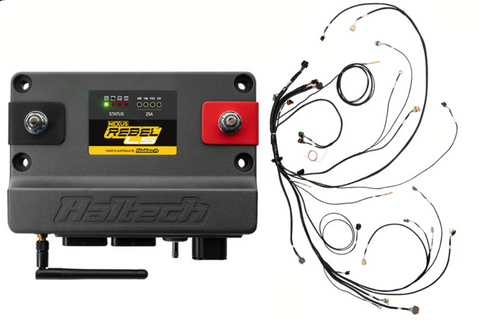

NEXUS Rebel LS - Suits Gen III
ECU designed from the ground up to suit GM's popular LS engine platform
Start-up is a breeze thanks to the new LS Set-up Wizard in our NSP software
Comes complete with an easy-to-install harness to suit multiple GM LS applications
Easy integration with Haltech dashes, PDMs, sensor kits, and accessories
Kit Supports Gen III engines with cable throttle.
Kit Includes:
- HT-220001 - Rebel ECU
- HT-186500 - Main Harness

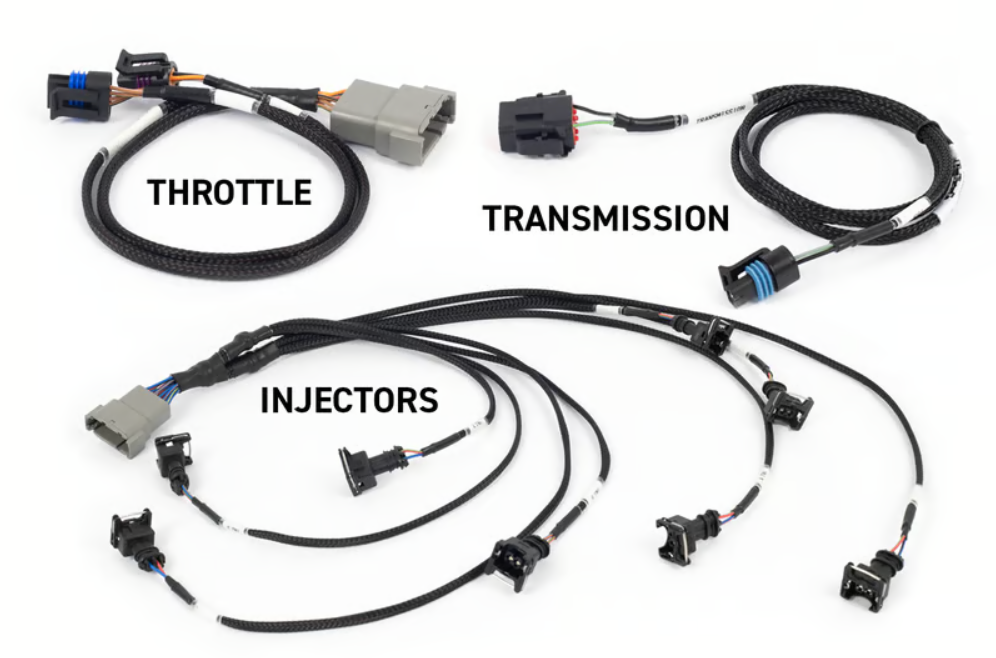

- HT-186504 - Cable Throttle + IAC sub-harness
- HT-186501- LS EV1 Injector Sub-Harness
- HT-187003 - T56 Transmission Harness

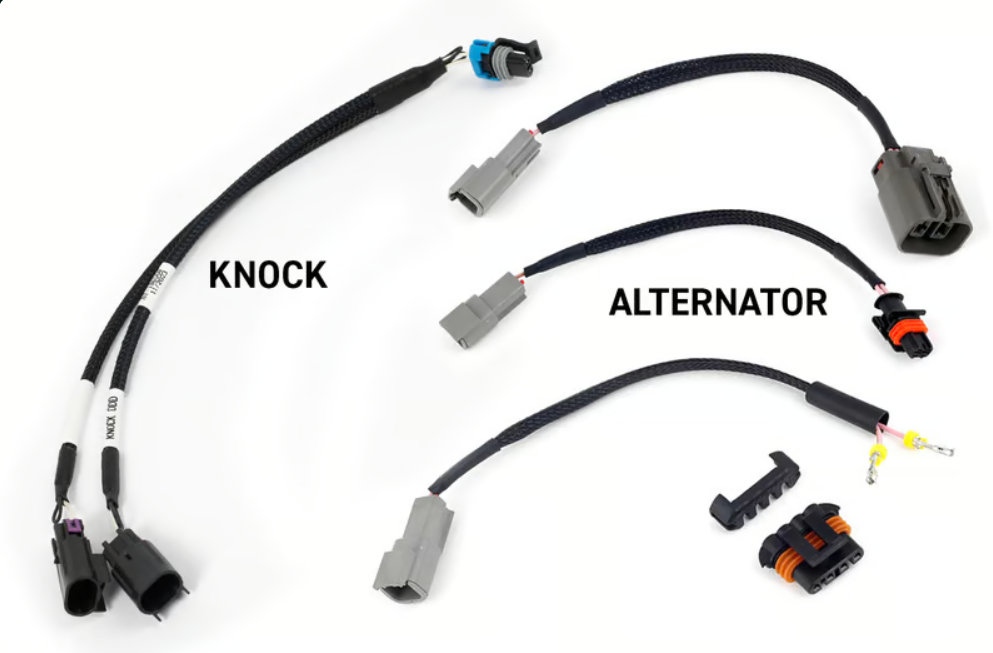

- HT-186123 - 2 Pin Bosch Alternator Harness
- HT-186124 - 4 Pin Delco Alternator Harness
- HT-186125 - 2 Pin Yazaki Alternator Harness
- HT-186508 - Gen III Knock Sensor Adaptor

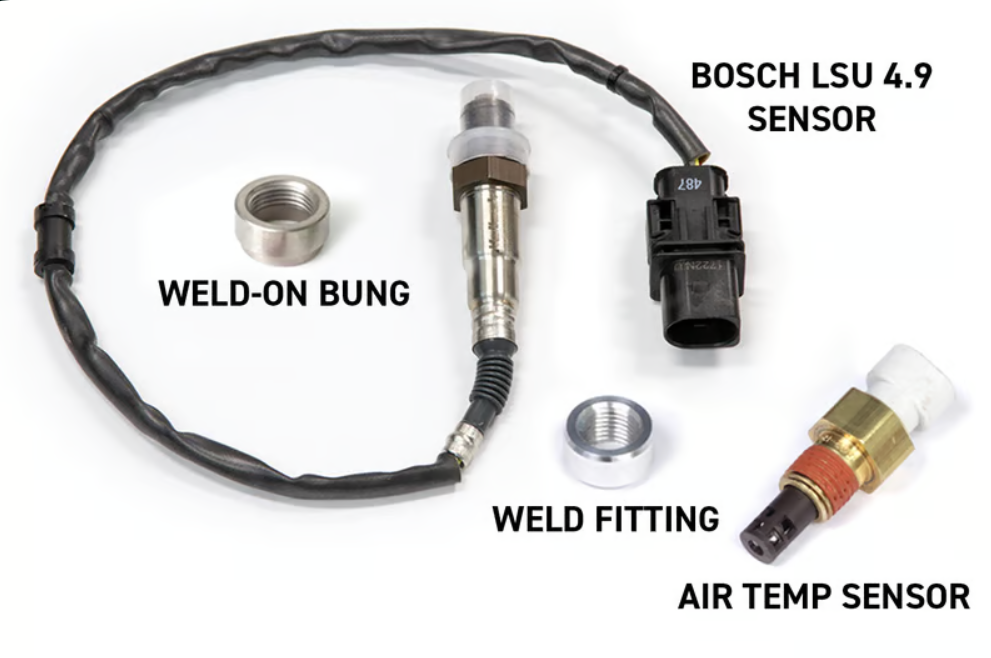

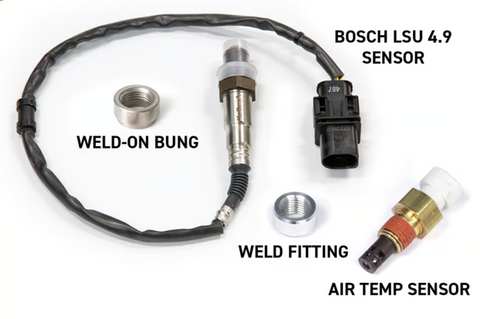

Sensor Pack
- Bosch LSU 4.9 Sensor
- Weld on fitting for O2 Sensor
- Air Temperature Sensor M14 x 1.5
- Weld on fitting for Air Temp Sensor
Nexus Ti4L Transmission Interface Kit - Suits GM 4L series
The Ti4L unit allows easy control for GM's popular 4L series of automatic transmissions. Designed as an expansion module for the NEXUS ECU and VCU range the Ti4L will be programmed via our NSP software, or Rebel LS users will be able to follow the simple set up wizard in the Haltech Connect App. Easy set-up is not the only feature! We've also developed smart long-term learning strategies via closed loop line pressure control, which means shifting gets better the more you drive.
Supports
- 4L60E, 4L65E, 4L70E (Non 4x4 2006-2008 only; 2009 onwards use different pinouts on the main transmission connector.)
- 4L80E, 4L85E (Non 4x4 1994 onwards only; 1991-1993 use a different main transmission connector.)
Features
- Plug and play with Nexus Rebel LS terminated harness
- Easy setup wizard for Rebel LS ECU
- Programmed and Setup via NSP Software or Haltech Connect App
- Long term learning strategies via closed loop line pressure control
- Haltech 500psi pressure sensor included in the kit

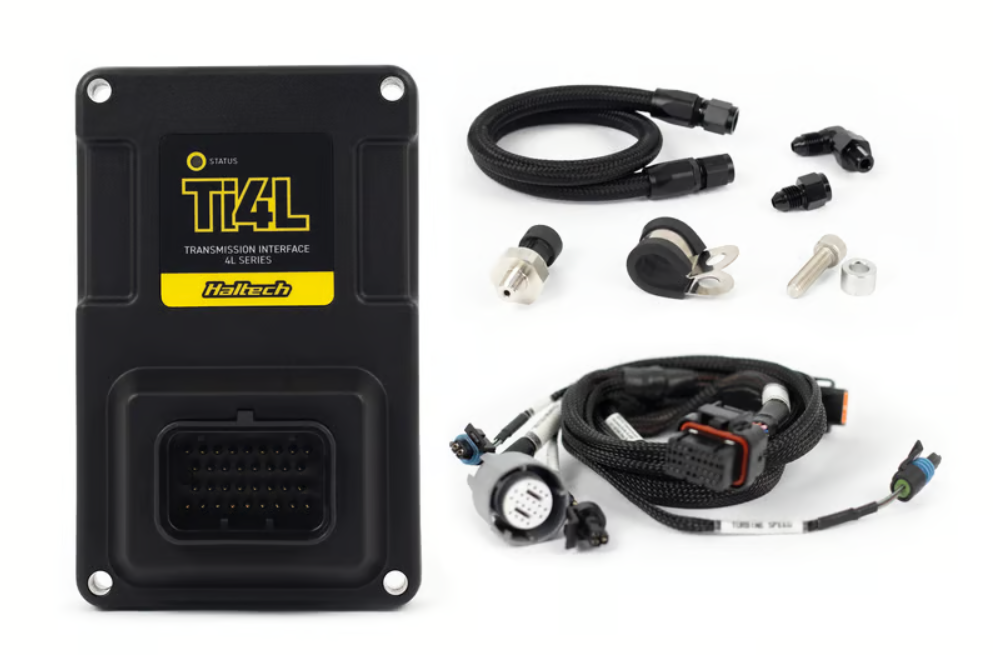

Product includes
- 1 x Nexus Ti4L - Cased Device Nexus Ti4L Transmission Interface
- 1 x HT-187000 Nexus Series Transmission Harness - Suits 4Lx0E
- 1 x 500 psi Pressure Sensor
- 1 x -4AN Male to 1/8NPT Male 90Deg fitting Black
- 1 x 1/8npt Female to -4AN Male adapter Black
- 1 x 10mm Aluminium Spacer Suit M8 Bolt
- 1 x Hose Assembly -4AN Female to -4AN Female Black
- 1 x Insulated P Clip 15mm ID / M8
- 1 x M8 Socket Head Cap Screw SS304 M8 x 30mm
- 1 x Quick Start Guide
